Upgraded 3~9V 2WD Smart Chassis Car DIY Kit For Arduino with Dual 1:48 TT Motor
- $11.65
Specifications:
- Type: 2WD
- Assembled size: refer to the product picture
- Battery: 4Pcs
- Suitable: DIYer
Regrading TT Motor:
| Voltage | DC 3V | DC6V | DC 7.2V |
| Current | 160mA | 220mA | 250mA |
| No-load Speed | 120 rpm/min | 200 rpm/min | 250 rpm/min |
| Load Speed | 100 rpm/min | 175 rpm/min | 210 rpm/min |
| Torque | 0.45 kg.cm | 1.0 kg.cm | 1.5 kg.cm |
| Reduction Ratio | 1:48 | ||
| Noise | ≤65dB | ||
| Motor Size | 65mm x 18mm x 22mm(L*W*H) | ||

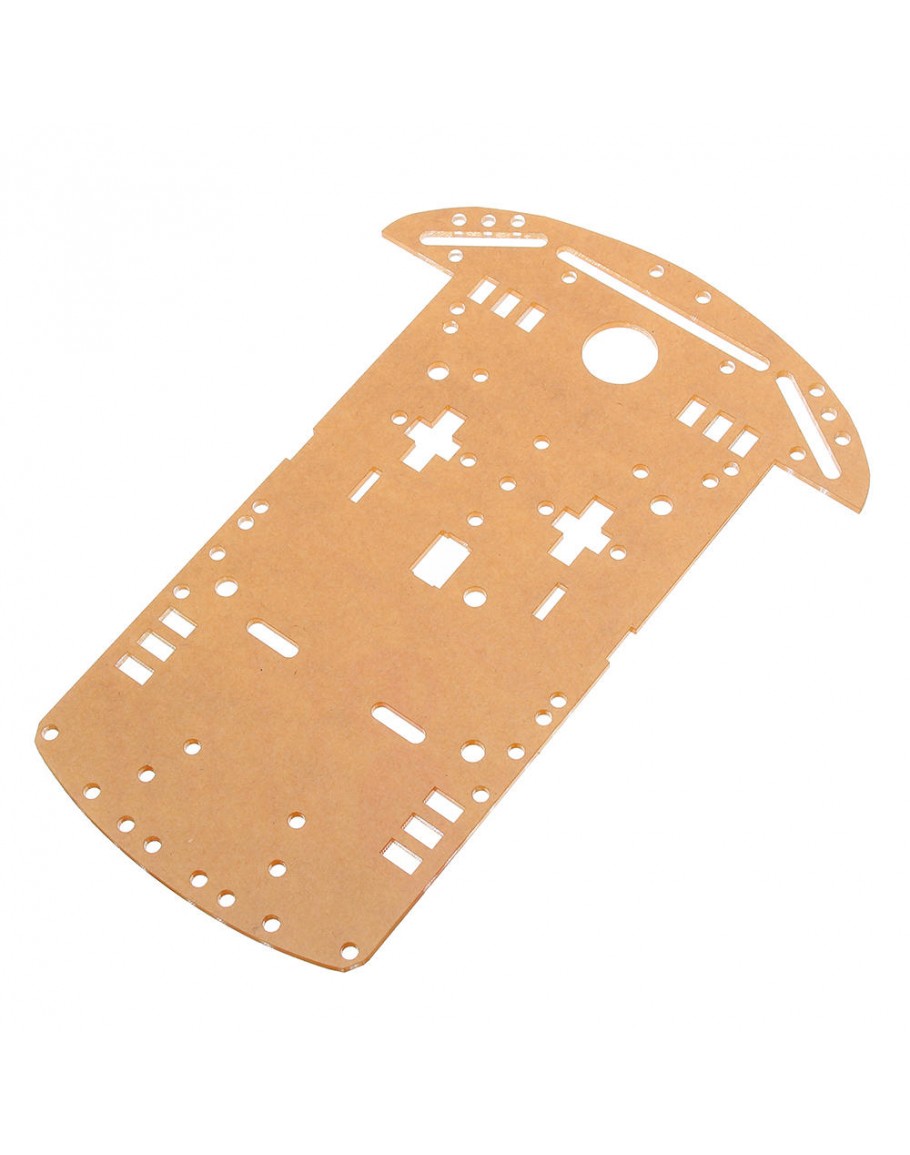

Regrading Smart Chassis:
| Voltage | 3~9V | Drive Mode | 2WD |
| Current | 600mA | Chassis Thickness | 3mm |
| Load | ≤2kg | Car Weight | 285g |
| Speed | 0.6 m/s | Car Size | 220 x 175 x 65mm |

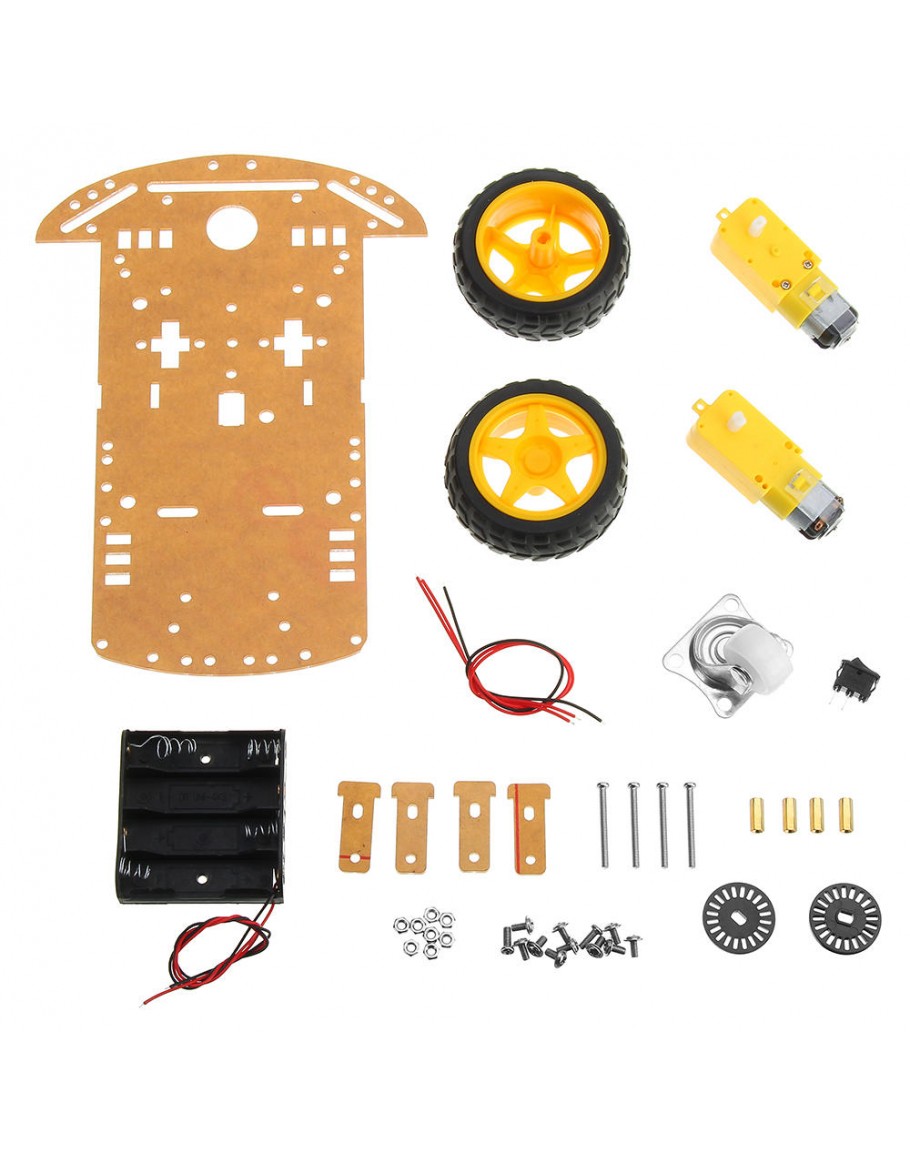

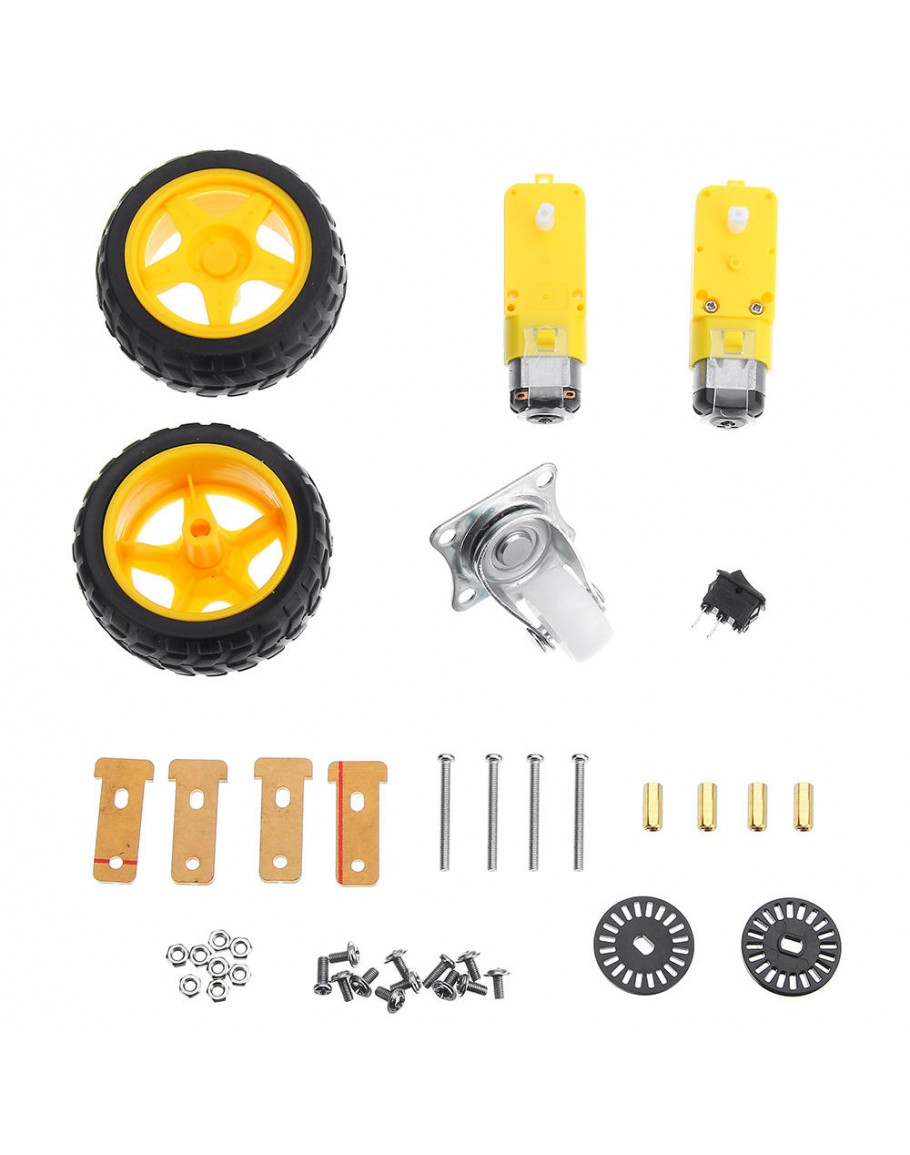

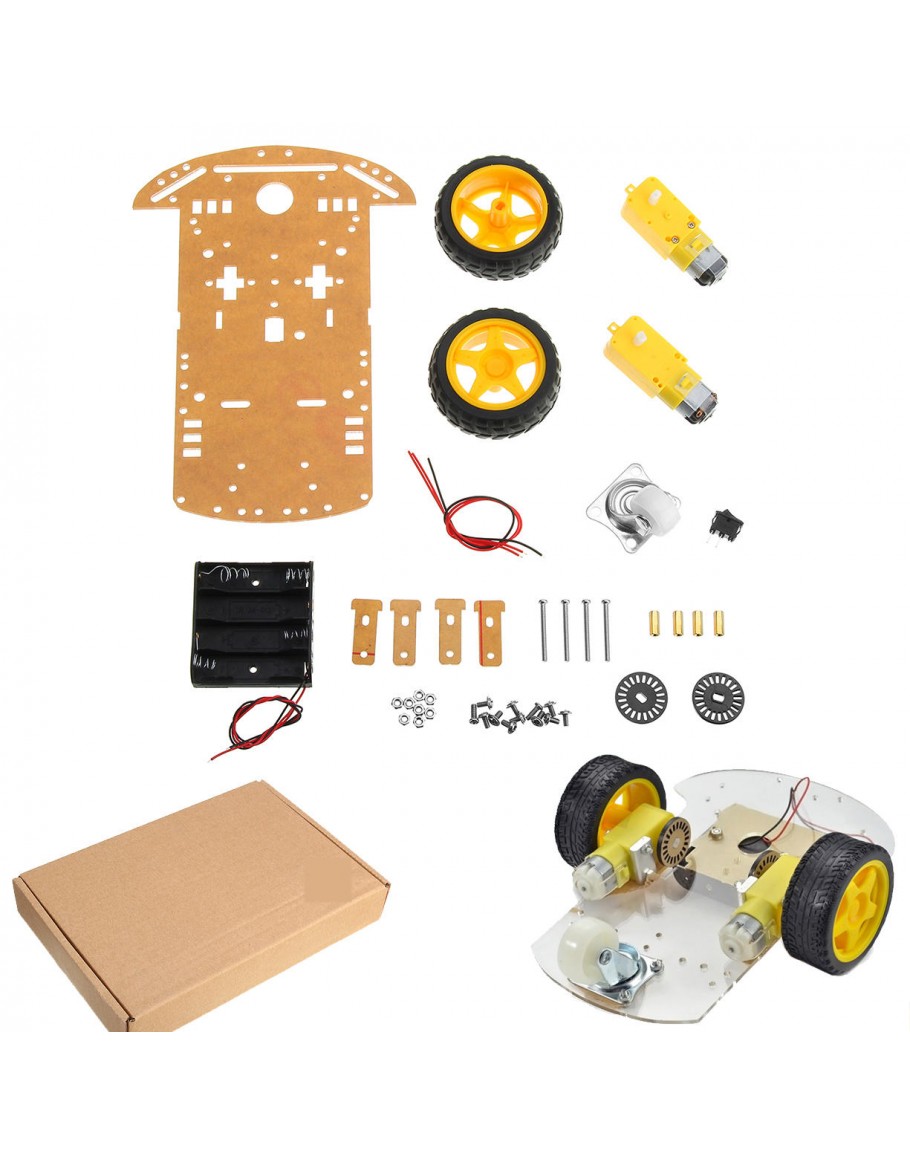

Package Included:

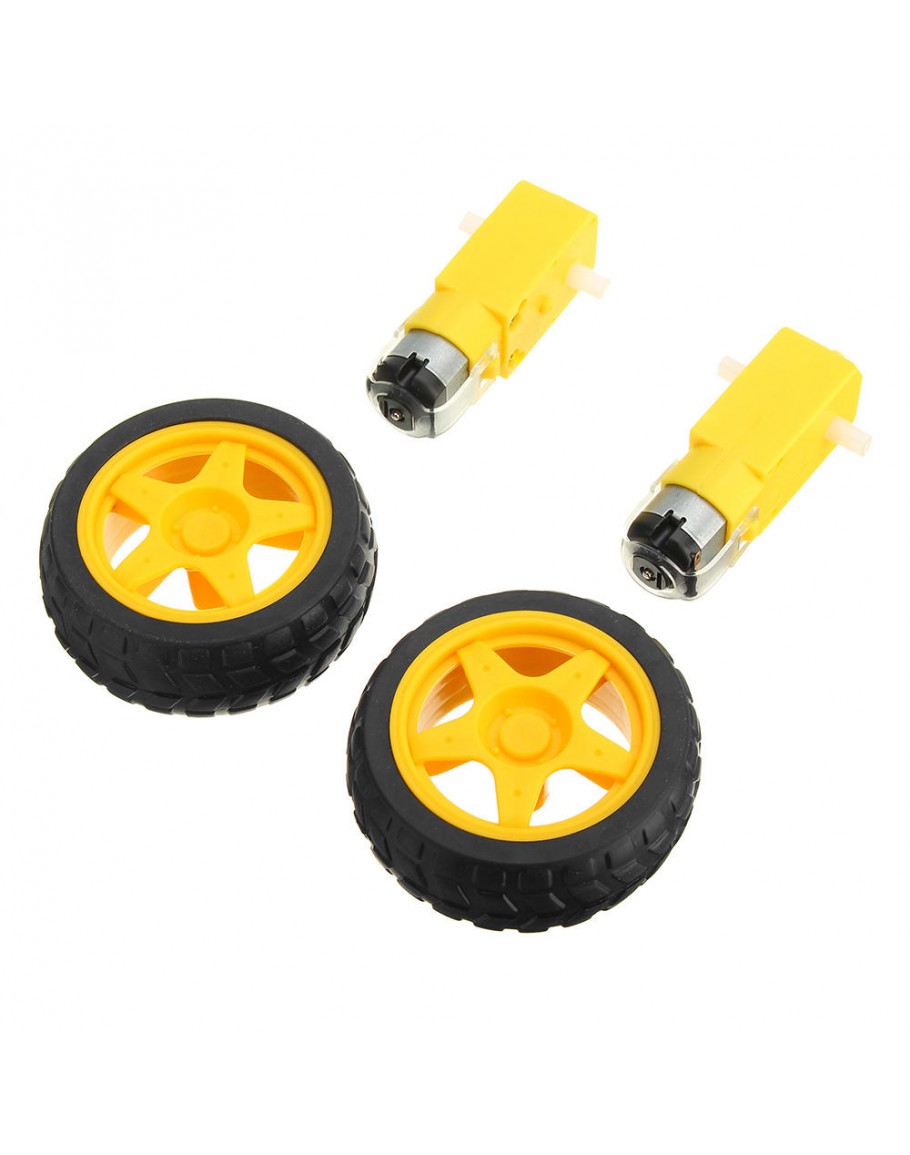

2 x 1:48 geared motor

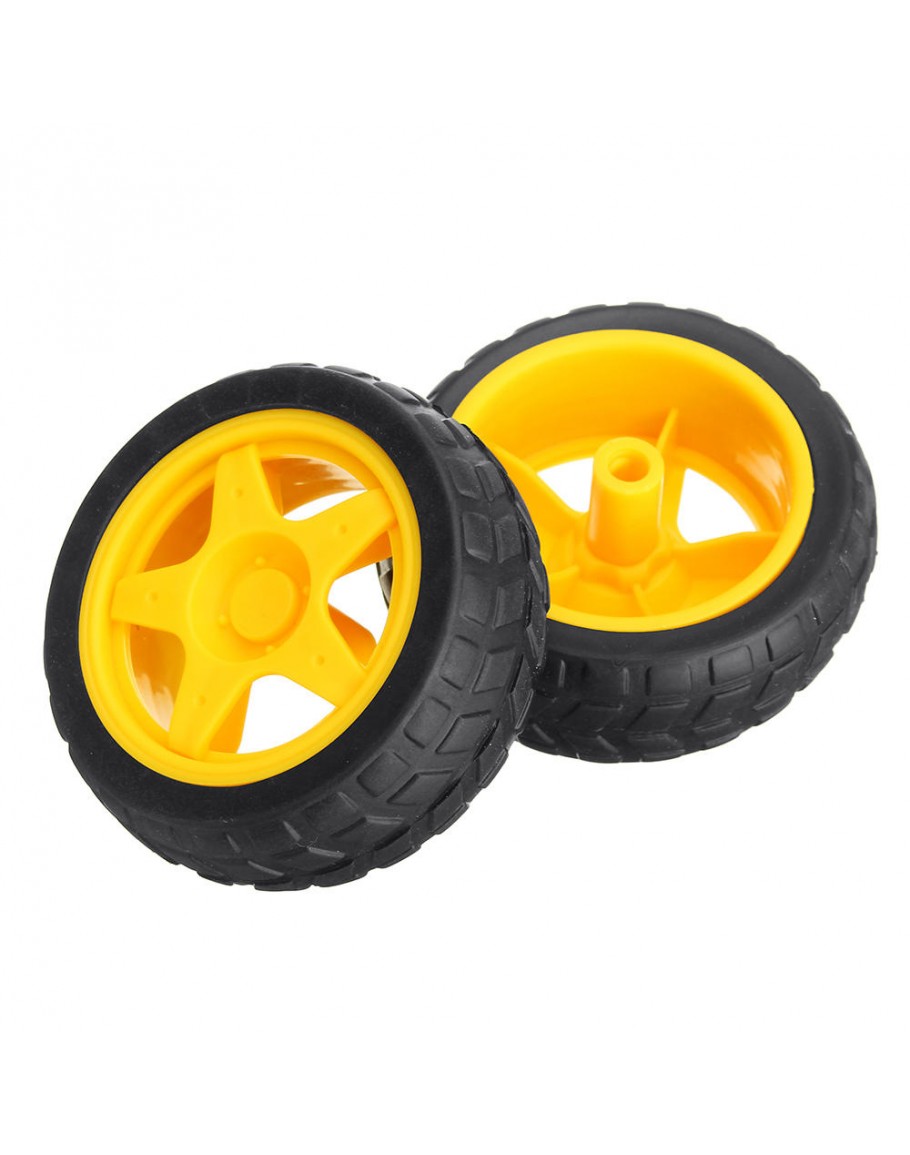

2 x wheel

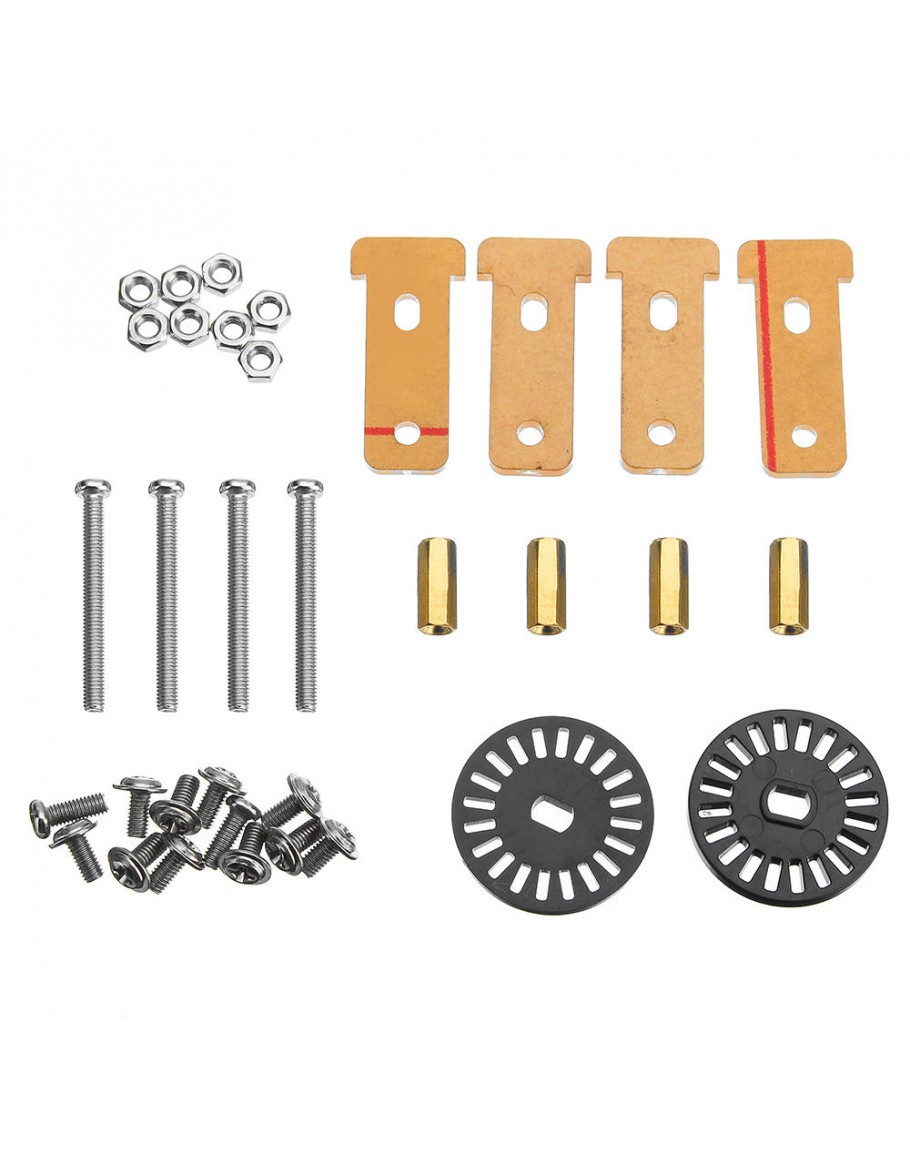

4 x High precision 20-line speedometer
1 x fastener

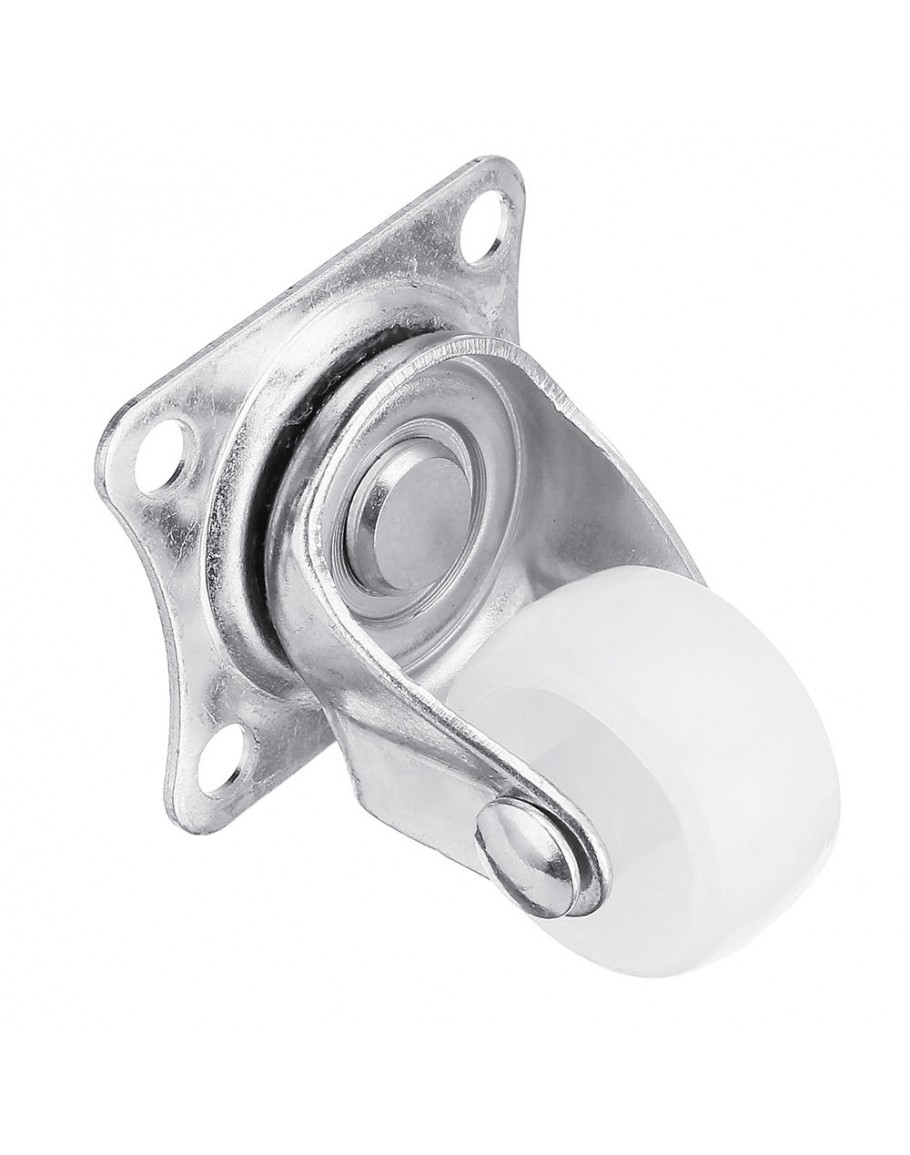

1 x Universal wheel

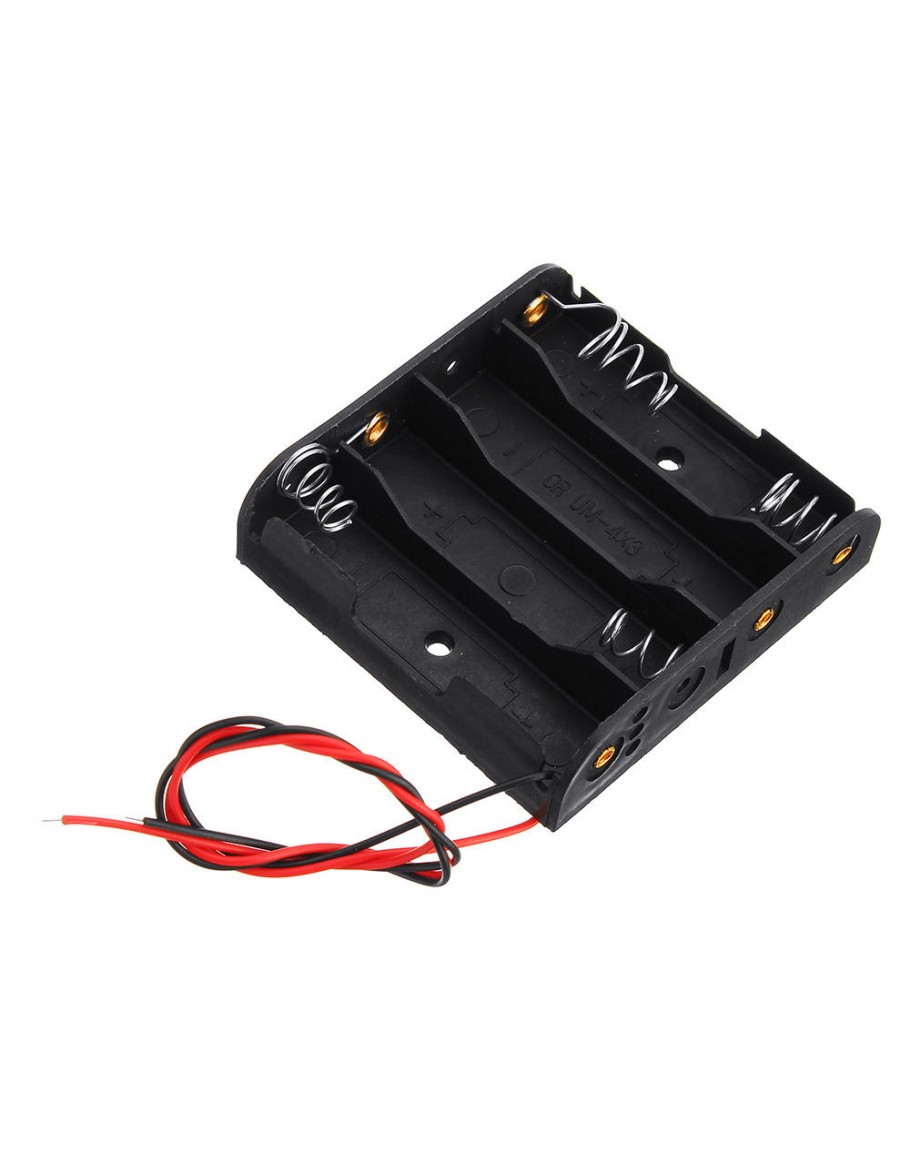

1 x Four battery box(without battery)
with Screws
with Screws
